Field cultivator
To applyFOR THOSE WHO VALUE UNIFORM SEEDLINGS
Working width 12 m
From 200 h.p.
6 700 kg
S–tine
F=120 kg
F=120 kg

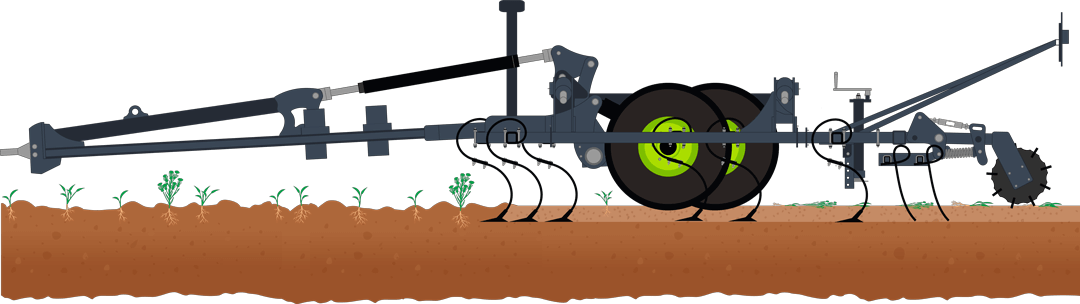

How does
the machine work?
the machine work?
Purpose
The versatile wide cultivator can perform a variety of tasks. It can carry out seedbed preparation of the soil from a depth of 5 cm, levelling the soil thanks to the combined tail, as well as cultivating fallow fields.
Seedbed preparation to a depth from 5 cm
Leveling the surface of the field
Fallow-land processing
TECHNICAL
DATA
DATA
| PARAMETER | KShU-12 |
|---|---|
| Working width, m | 11,95 |
| Tractor requirement, h.p. | from 200 |
| Connection | Towing eye for a pin 50 mm |
| Required number of paired hydraulic outlets | 2 |
| Working depth, cm | 5–15 |
| Working speed, km/h | to 12 |
| Number of tines, pcs. | 42 |
| Tine type | gauge |
| Tine overload protection | Non–Stop overload protection |
| Tine spacing, mm | 300 |
| A-blade width, mm | 330 |
| Roller type | Cage 430 mm |
| Tires | 9.00–16 |
| Length in the transport position, mm | 7,84 |
| Width in the transport position, mm | 4,23 |
| Height in the transport position, mm | 4,13 |
| Weight, kg | 6700 |
ADVANTAGES
LESS TIME FOR ADJUSTMENT
Rapid adjustment of the operating depth using hydraulic cylinders and reversible spacers.
CONFIDENT OPERATION WHERE THE OTHERS FAIL
Thanks to a dismountable tine with the actuation force of 120 kg, the unit can operate at a fixed depth in hard soils, where the most analogs are powerless.
CONSUMABLES SAVINGS
The dismountable structure of the tine allows you to replace only the worn part of the working body.
OPERATIN WITHOUT CLOGGING
The original configuration diagram of the tines increases the throughput efficiency of the implement, making it resistant to clogging.
OPERATION SAFETY
We know how important the uninterrupted operation of the unit in the field is, so we have provided a large margin of safety for the main frame of the implement, and two hydraulic cylinders for folding each section eliminate the occurrence of overloads on the hinges.
PERFECT COMBINATION FOR THE BEST RESULT
Weed removal and high-quality field leveling thanks to the combination of weeder harrows and a slatted roller.
Achieve ideal working results with flexible weeder settings.
