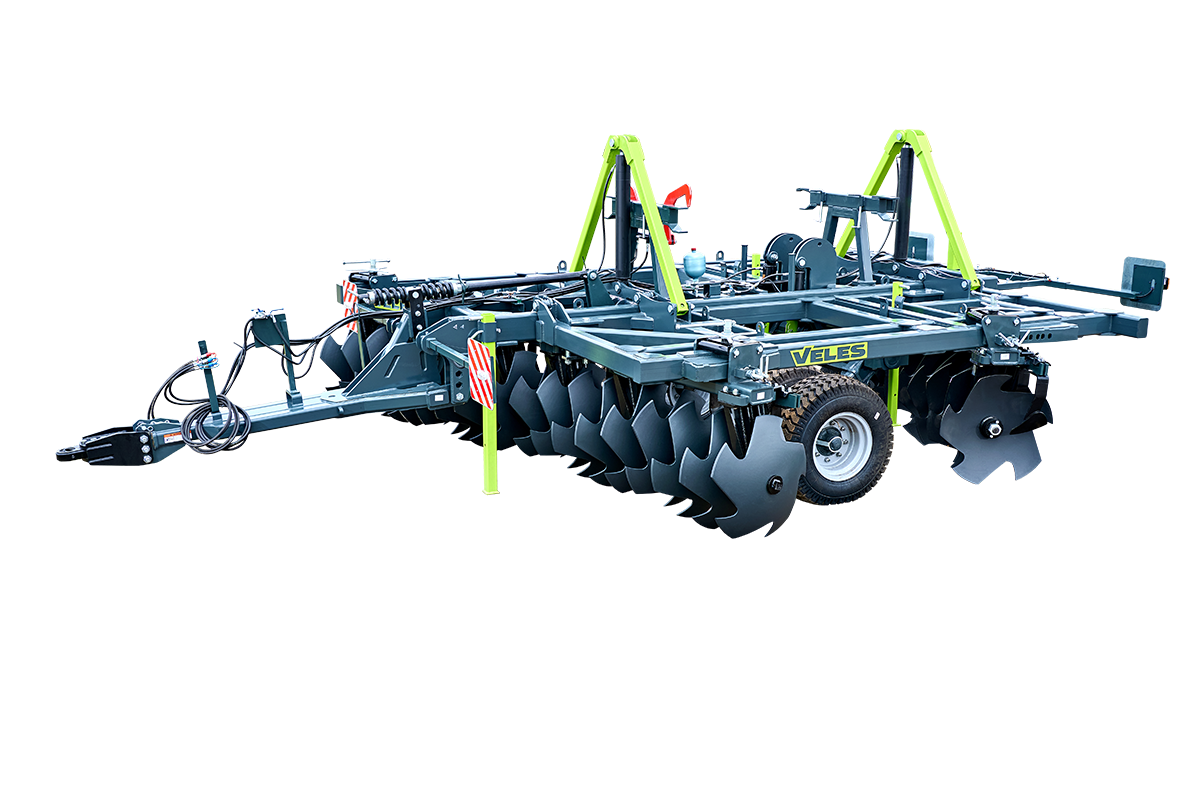

Heavy disc harrows Ø 810 mm

Anfrage senden
Heavy disc harrows Ø 810 mm
Working width 5 m
Working width 5 m
von 375 p.s.
von 375 p.s.
9 200 kg
9 200 kg
Disc 560 mm
Disc 560 mm
Heavy disc harrows Ø 810 mm
Putting fallow and virgin lands into circulation
Putting fallow and virgin lands into circulation
Primary soil cultivation up to 25 cm
Primary soil cultivation up to 25 cm
Incorporation of large quantities of unchopped plant matter
Incorporation of large quantities of unchopped plant matter
Incorporation of mineral fertilizers
Incorporation of mineral fertilizers
SICKLE DISKS
The most powerful subtype of discs Ø810 mm and 10 mm thick is capable of cutting shrub vegetation, young birches, maples. At the same time, the discs can be used for primary soil cultivation after harvesting any crops to a depth of up to 25 cm
PROTECTION FROM OVERLOADS IN OPERATION
The unit operates on the unpredictable terrain of virgin lands, which means it is constantly subjected to varying loads from significant changes in terrain. To increase the reliability of the implement, a spring mechanism is implemented on its drawbar, which allows the unit to overcome obstacles and unevenness along an optimal trajectory.
PROTECTION AGAINST OVERLOADS IN TRANSPORT
When moving over rough terrain, the implement's transport trolley may experience significant loads when driving over uneven surfaces. The presence of a hydraulic accumulator provides cushioning for the hydraulic cylinder rods, protecting them from breakage when driving over them.
ALWAYS ON THE HORIZON
After setting the position of the earring and adjusting the horizon of the tool, the unit will maintain parallelism regardless of the selected processing depth. This significantly saves time when it is necessary to adjust the processing depth
BEARING SUPPORT PRODUCED BY VELES
Big mass for big challenges
