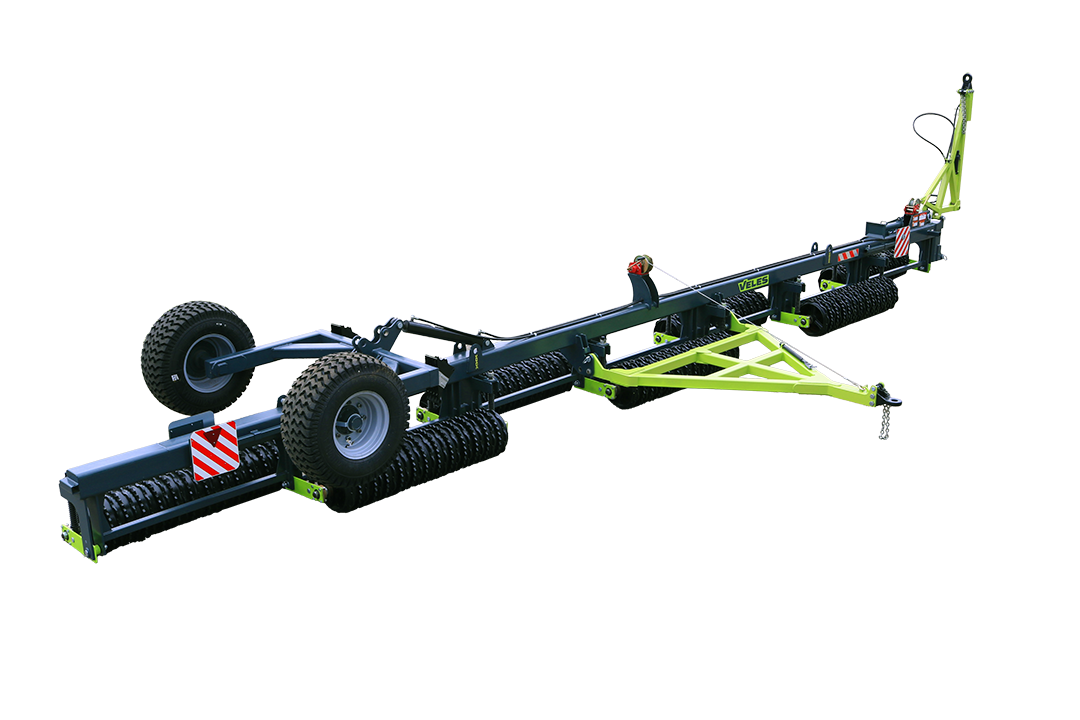

Cambridge rollers
To applyPERFECT COMPACTING OF ANY SOIL TYPES
Working width 12,4 m
From 150 h.p.
7 050 kg
Spring suspension
How does
the machine work?
the machine work?
Purpose
The Cambridge roller is a versatile implement that can perfectly compact any type of soil. It is, capable of perfectly packing all types of soil. It perfectly levels the surface of the field, crushing lumps and blocks.
Reconsolidation of crop residues
Packing to close the moisture
Crushing lumps and clods
TECHNICAL
DATA
DATA
| PARAMETER | KZK-12,4 |
|---|---|
| Working width, m | 12,4 |
| Tractor requirements, h.p. | from 150 |
| Connection | Towing eye for a pin 50 mm |
| Required number of paired hydraulic outlets | 1 |
| Working speed, km/h | 6–10 |
| Number of sections, pcs. | 5 |
| Section width, mm | 2512 |
| Section overlap, mm | 40 |
| V-shaped discs diameter, mm | 460 |
| Toothed ring diameter, mm | 470 |
| Tires | 15.5/65–18 |
| Length in the transport position, mm | 14,87 |
| Width in the transport position, mm | 2,5 |
| Height in the transport position, mm | 3,1 |
| Road clearance in the transport position, mm | 250 |
| Weight, kg | 6650 |
ADVANTAGES
FOLLOWING THE FIELD RELIEF
Thanks to the suspension by means of coil springs, each section 1.8 m wide has the ability to follow obstacles encountered on the way, which allows the remaining sections to continuously perform their work.
CONVENIENT MOVEMENT ON ROADS
The unit width in the transport position is 2,5 mm.
CONVENIENT TRANSFER TO THE OPERATING POSITION
Winches are installed on each draft tongue of the implement for easy transfer of the implement to the working and transport position.
HIGH SPECIFIC PRESSURE
The diameter of the roller discs of 460 mm - together with the unit weight of 7 050 kg - allows you to create high specific pressure and ensure high-quality packing and aggressive work with blocks and lumps.
GALLERY
IMPORTANT OPTIONS
Cat — II
Cat — III
Cat — III
See the unit in operation
