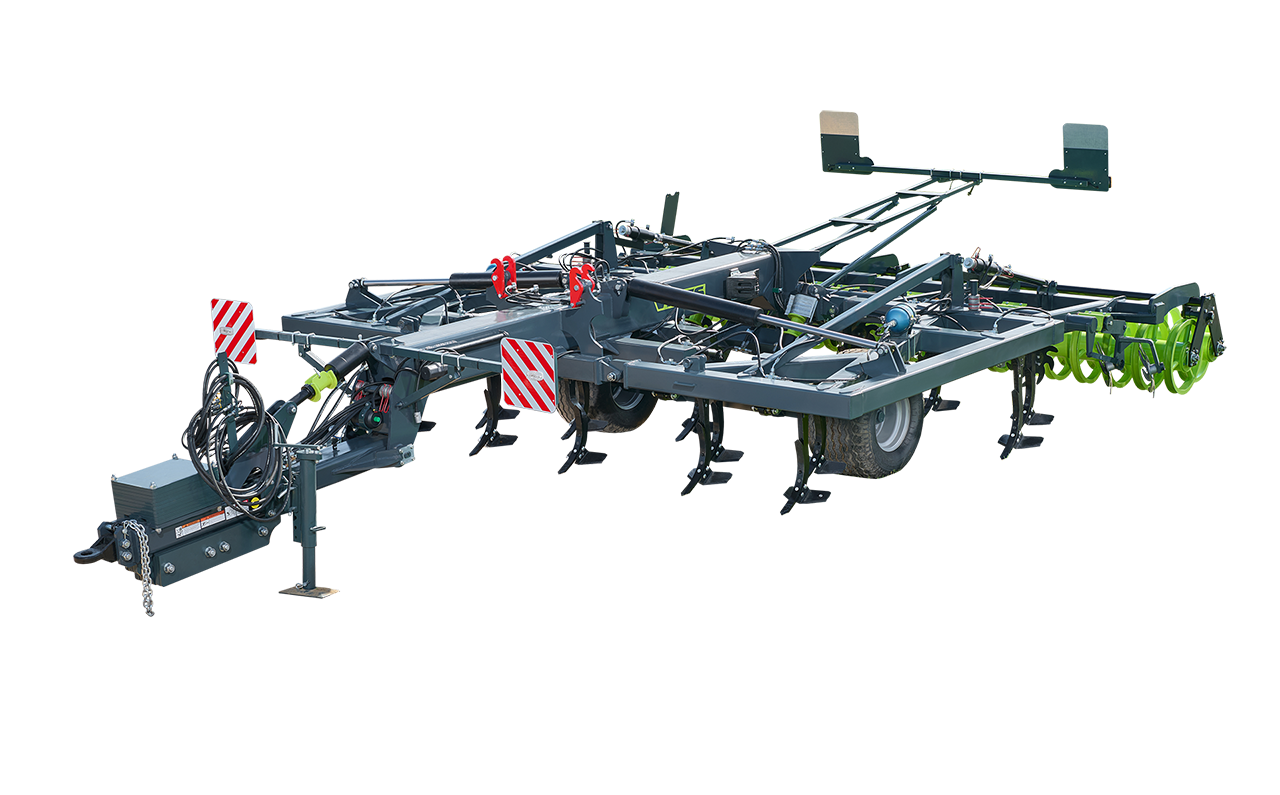

Плуг чизельный универсальный ПЧУ

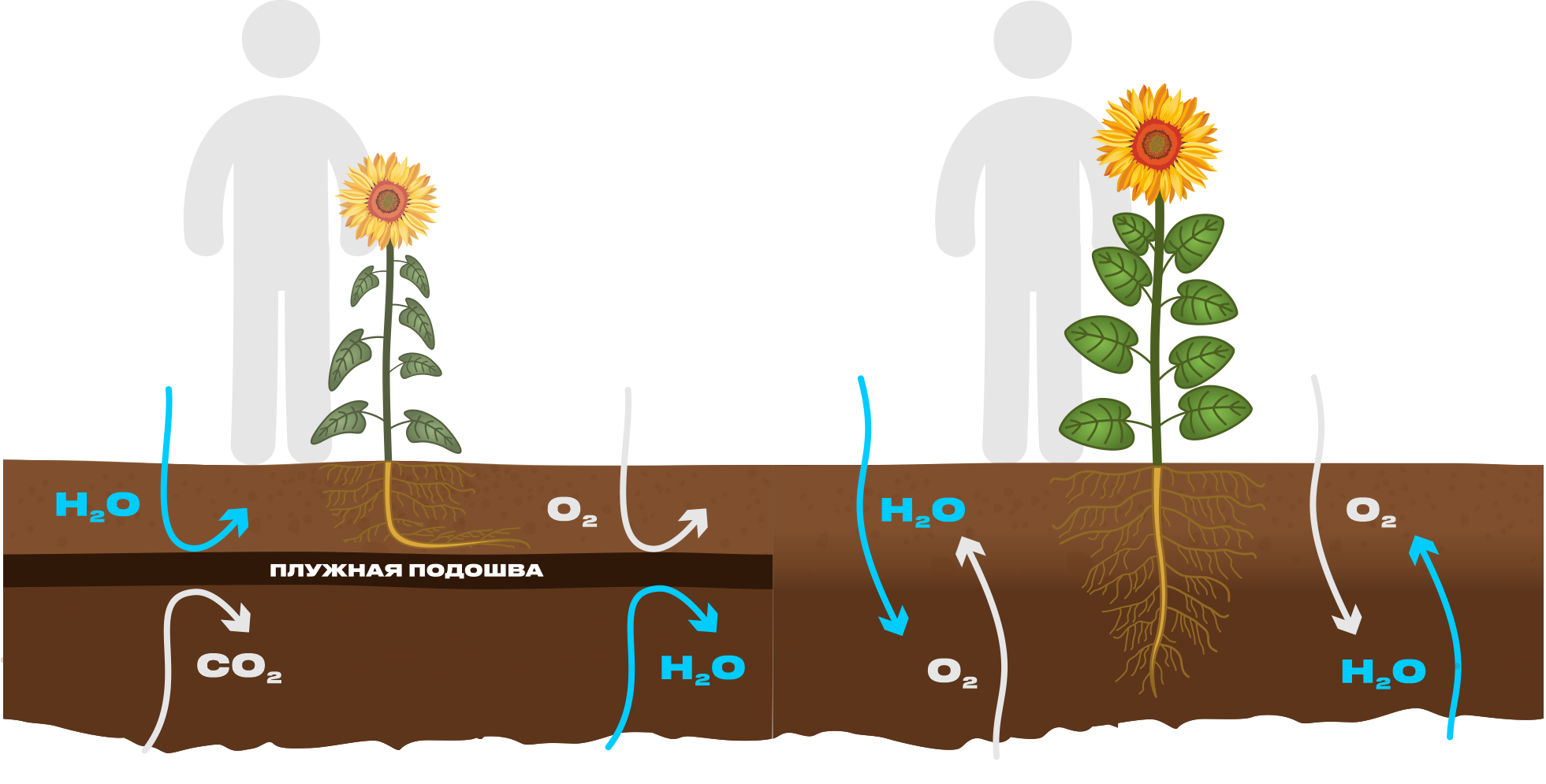

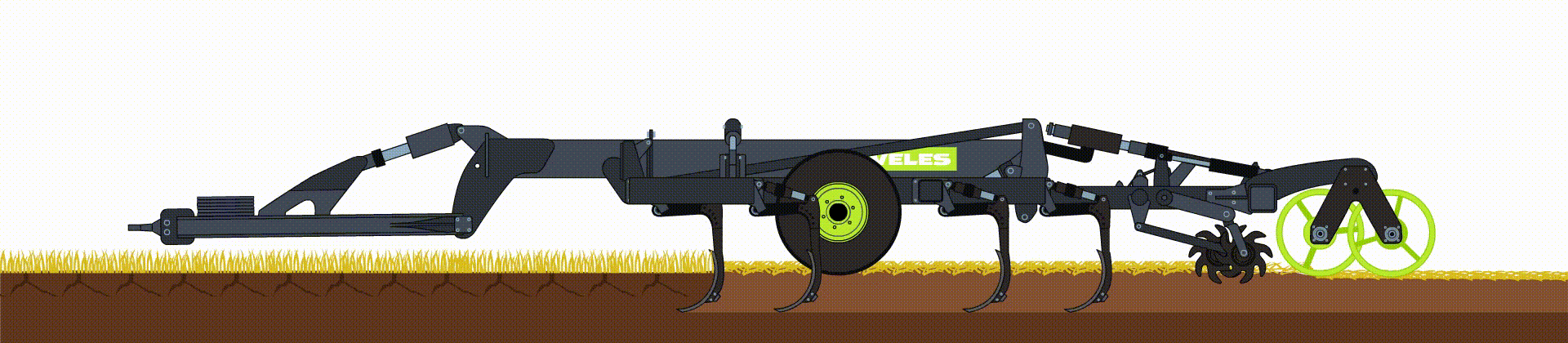

The chisel tines are designed for cultivation and deep loosening of the soil up to 30 cm to break up the plough pan, which is usually located at a depth of 20-25 cm. The tines are spaced 270 mm apart in 4 rows, which prevents their clogging.

The tines are the main working zone of the machine and several implement variants. The 50 mm wide chisels are used for effective deep loosening, while the 80 mm wide chisels are designed for more intensive soil mixing. If full overlapping is required, wing shares are fitted to the chisels to increase the undercutting width of each tine up to 325 mm.

A row of double levelling discs, 430 mm in diameter, is designed to cover the furrows formed by the tines and pre-levelling the soil before the roller. The petal-shaped discs provide additional soil mixing, improving the quality of the mulch layer. The disc position can be stepless adjusted independently from the rest of the working areas from the tractor cab by means of hydraulic cylinders.

The tandem u-ring roller with a diameter of 580 mm and pressure adjustment compacts the soil and levels the field surface. It is effective on soils with a moisture content of more than 25% - due to the "soil-to-soil" operating principle - the slots between the roller rings are filled with soil and no further sticking occurs. The checkerboard arrangement of the roller rings increases resistance to clogging and promotes additional self-cleaning. The balancing suspension, which gives a "walking" effect to the roller, minimizes the risk of stone damage.
