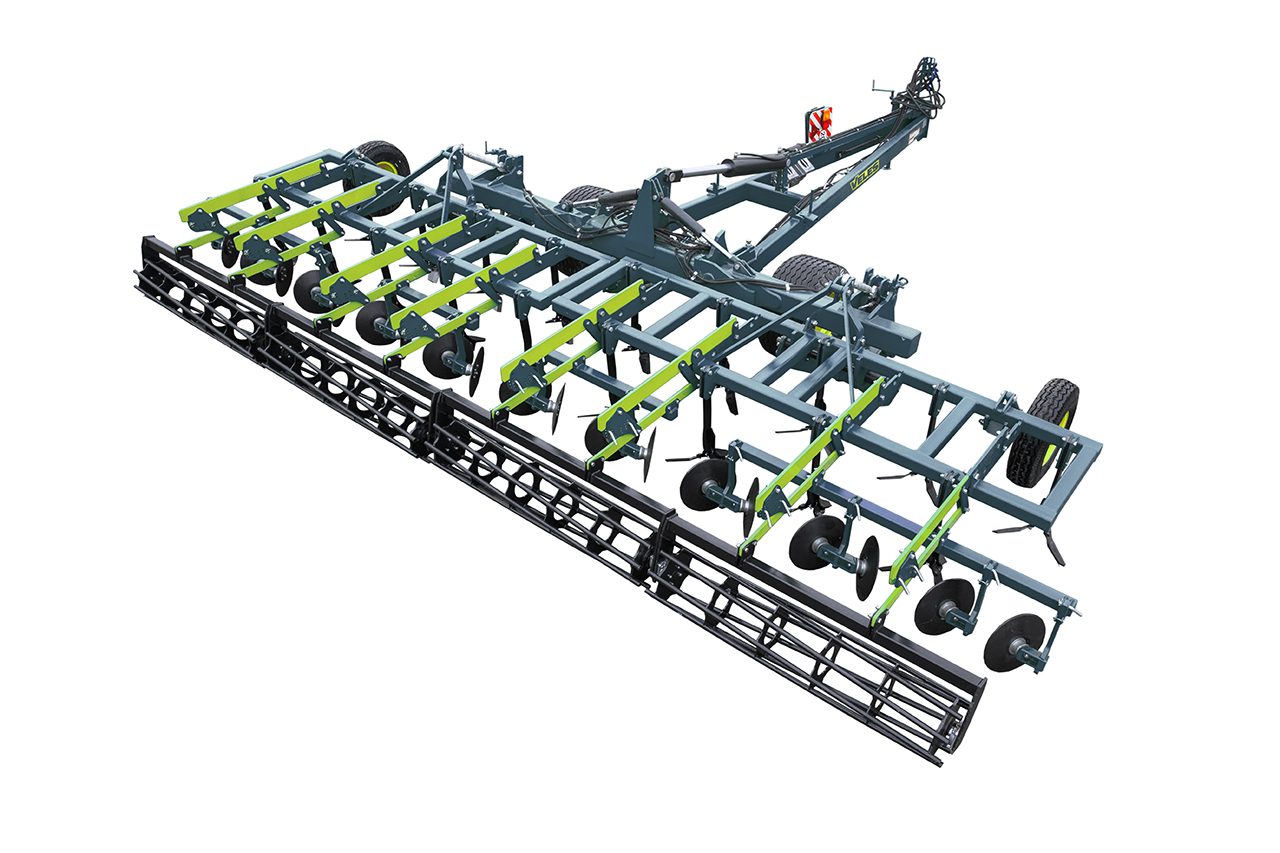

Stubble cultivators

To apply

MODERN APPROACH TO GRAIN STUBBLE PROCESSING

Working width from 7,4 to 8 m

From 300 h.p.

Weight from 5020 kg

Cutting width
480 mm

How does
the machine work?

Purpose

The stubble cultivator is designed for cultivating stubble crops. It is capable of controlling the working depth accurately.

Primary tillage up to 16 cm

Provocation of fallen seeds and weeds

Fallow-land processing

Injection of liquid organic fertilizers

TECHNICAL
DATA

Maximize

PARAMETER	KSO-7,4	AN-8-KSO
Working width, m	7,31	8
Required wheeled tractor power, h.p.	from 300	from 350
Connection	Towing-eye 50 mm	Towing-eye 50mm, towing-eye 90 mm for hydraulic hitch or cross shaft Cat. III/IV
Required number of paired hydraulic outlets	2	3
Working depth, cm	to 15 (to 16*)	< 18
Working speed, km/h	9–12	10–12
Number of tine rows, pcs.	2	2
Number of tines, pcs.	17	18
Working body protection type	shear bolt	shear bolt
Tine spacing, mm	430	890
Working width of one tine, mm	480 (135*)	535
Number of leveling discs, pcs.	18	19
Levelling disc diameter, mm	430	430
Tires	2х15.5/65-18 + 4х8.25-15	2х520/50–17 + 2х8.25–15
Length in the transport position, mm	6,4	6,1
Width in the transport position, mm	3,6	3,16
Height in the transport position, mm	3,87	4
Weight, kg	5020	8770

*when installing a reversible chisel

KSO-7.4

The VELES stubble cultivator is available in two versions:

- KSO-7,4

- AN-8 KSO

AN-8-KSO

Приобретая агрегат на базе носителя АН-8, вы получаете возможность трансформировать его в различные орудия. Заменяя приобретенные секции, можно собрать любую из трех машин:

- Средняя дисковая борона

- Стерневой культиватор

- Предпосевной культиватор

More about AN-8

ADVANTAGES

WEED KILLING

The stubble cultivator is necessary in the fields contaminated with rhizomatous weeds such as creeping wheatgrass, sow thistle, horsetail, etc. It cuts weeds, slowing down the growth of the plant, but does not grind it at the same time.

PARTIAL STUBBLE PRESERVATION

After the unit passes, a part of the stubble and plant residues remains on the surface, thereby reducing the impact of wind and water erosion, and also contributing to the snow retention.

TWO TYPES OF WORKING BODIES

It can be fitted with a 480 mm tine for full coverage, or with a 135 mm chisel for strip treatment and fuel savings.

TANDEM TUBE-SLATTED ROLLER

It levels and compacts the soil across the full operating width, while the tube roller helps to eliminate weeds.

IMPORTANT OPTIONS

Can be transformed into PAV and BD

Cat — III
Cat — IV

Chisel 135 mm

See the unit in operation
