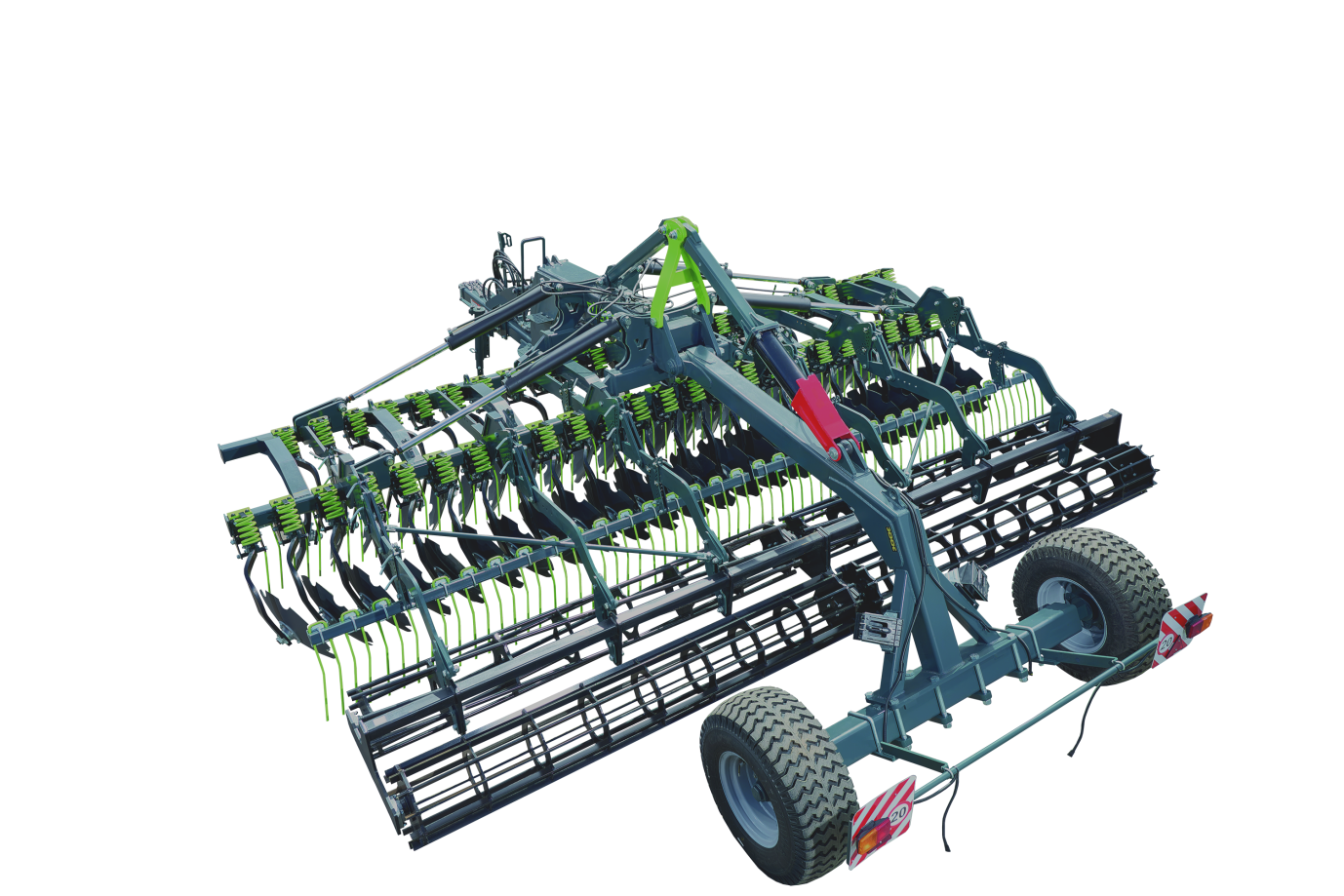

Medium disc harrows Ø 620 mm
To applyIMPRESSIVE PERFORMANCE UNDER ROUGH CONDITIONS
Working width from 5 to 8 m
From 240 h.p.
Weight from 6 500 to 8 770 kg
Disc 620 mm
How does
the machine work?
the machine work?
Purpose
The medium disc harrows are able to work effectively in difficult conditions. They are designed for primary tillage, cutting up sodded layers and, breaking up chunks after mouldboard tillage. The harrows can also perform primary cultivation of disused lands and work on fallow fields.
Primary tillage of long fallow land
Primary tillage up to 15 cm
Fallow-land processing
Cutting of turf beds and lumps
TECHNICAL
DATA
DATA

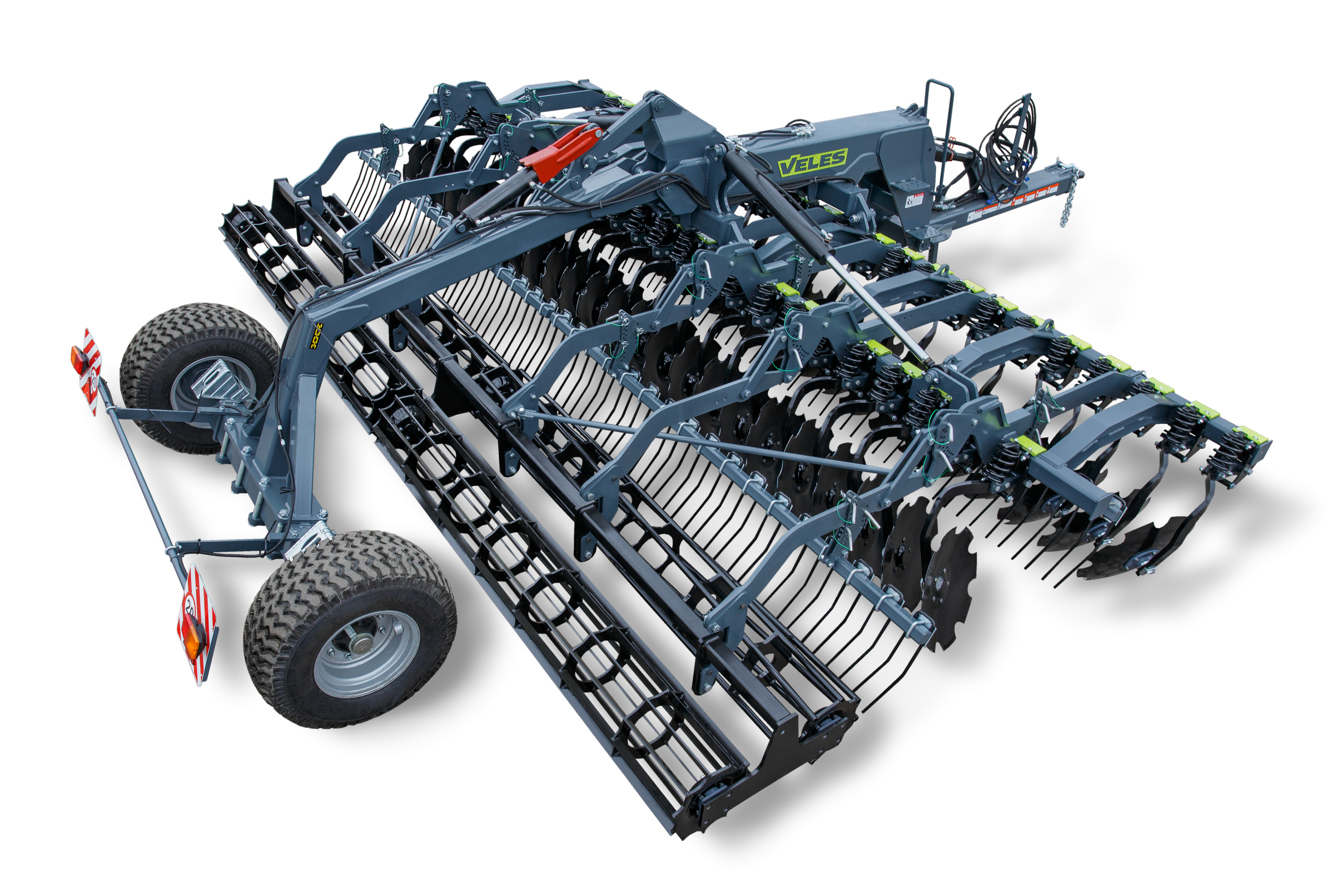

| PARAMETER | BDP-5-620 | BDP-6-620 | AN-8-BD |
|---|---|---|---|
| Working width, m | 5,0 | 6,0 | 8,0 |
| Tractor requirement, h.p. | from 240 | from 280 | from 360 |
| Connection | Towing-eye 50mm, towing-eye 90 mm for hydraulic hitch or cross shaft Cat. III/IV | Towing-eye 50mm, towing-eye 90 mm for hydraulic hitch or cross shaft Cat. III/IV | Towing-eye 50mm, towing-eye 90 mm for hydraulic hitch or cross shaft Cat. III/IV |
| Required number of paired hydraulic outlets | 2 | 2 | 3 |
| Working depth, cm | < 15 | < 15 | < 15 |
| Working speed, km/h | < 12 | < 12 | < 12 |
| Disc diameter, mm | 620 | 620 | 620 |
| Disc type | conical, notched | conical, notched | conical, notched |
| Disc spacing, mm | 250 | 250 | 250 |
| Disc rows spacing, mm | 1070 | 1070 | 1070 |
| Overload protection type | Non–Stop overload protection | Non–Stop overload protection | Non–Stop overload protection |
| Roller type | tandem, tube-slatted roller 400 mm or ring roller 450 mm | tandem, tube-slatted roller 400 mm or ring roller 450 mm | tandem, tube-slatted roller 400 mm |
| Tires | 15.5/65–18 or 520/50–17 | 15.5/65–18 or 520/50–17 | 520/50–17 |
| Length in the transport position, m | 7,94 | 7,94 | 6,3 |
| Width in the transport position, m | 3,0 | 3,0 | 3,0 |
| Height in the transport position, m | 3,6 | 4,2 | 4,9 |
| Weight, kg | 6035 | 6500 | 8770 |
ADVANTAGES
FUEL SAVINGS
The bearing assembly of the disc is located in the passive zone, so it does not interact with the working medium and does not create additional resistance, which significantly extends its service life.
NON-STOP OPERATION
Work without stopping thanks to the individual spring protection of the tine, the actuation of which starts from 180 kg.
OPERATIN WITHOUT CLOGGING
The weeder sections between the disc rows and in front of the roller act as screens, preventing soil from falling from the first disc row to the second one, and from the second row on to the roller.
CONVENIENT MOVEMENT ON ROADS
Compact dimensions in the transport position - the width does not exceed 3.0 m
ONE CARRIER - THREE IMPLEMENTS*
By purchasing a unit based on the AN-8 carrier, you get the opportunity to transform it into various implements. By replacing the purchased sections, you can assemble any of the three implements.
* Only for AN-8-BD
